CMF+ESD
CMF210-N6L
CMF+ESD

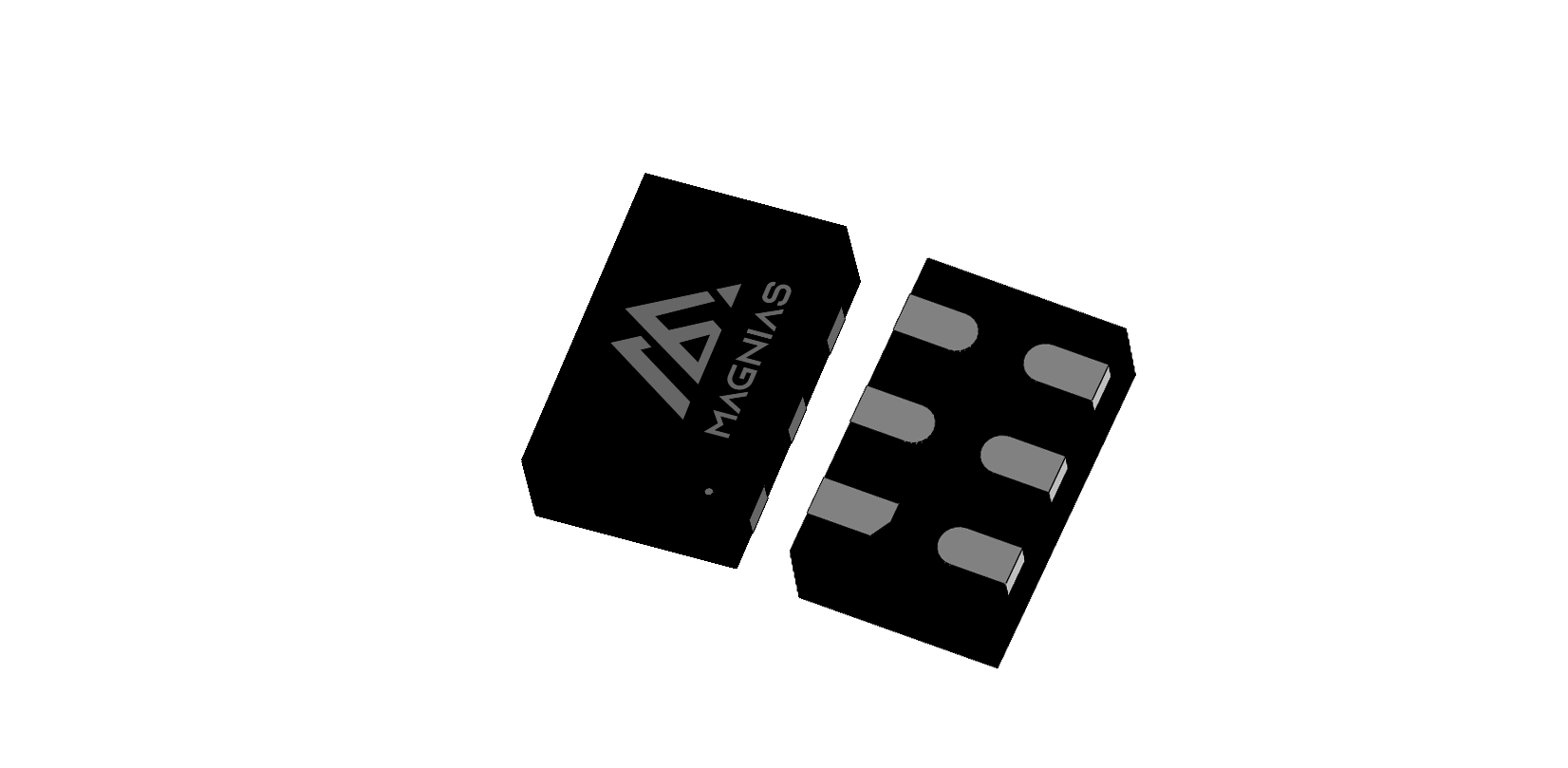

CMF+ESD in a QFN1.4 x 1.35-6L package.
QFN1.4 x 1.35-6L RoHS Halogen Free AEC-Q101 version available AVAILABLE
Package: QFN1.4 x 1.35-6L
Features
- IEC 61000-4-2, level 4: ±20kV (air discharge), ±9kV (contact discharge)
- High common mode attenuation on WLAN frequencies: -15 dB at 2.4 GHz, -21 dB at 5.0 GHz, -17 dB at 6.0 GHz
- Large bandwidth: 10.7 GHz
- AEC-Q101 qualified
Applications
- Notebook and computers
- HDMI 2.1 and 2.0
- Display Port
- USB Interfaces
- Ethernet RJ45 10G
- SIM/SD Card
- WIFI 6 devices
Key specifications
Package
QFN1.4 x 1.35-6L
ESDC
±9
ESDA
±20
IRMS
100
RDC TYP
3
