CMF+ESD
CMF205-N6L
CMF+ESD

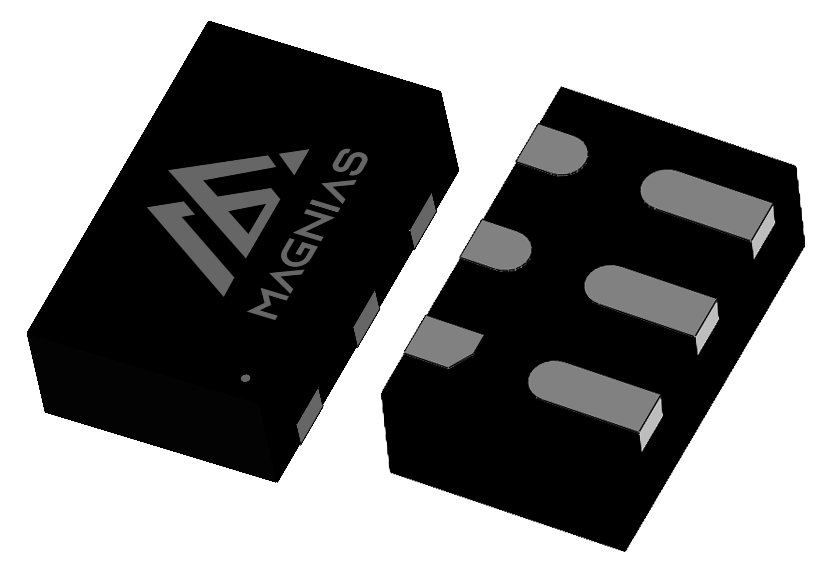

CMF+ESD in a QFN1.7 x 1.5-6L package.
QFN1.7 x 1.5-6L RoHS Halogen Free AVAILABLE
Package: QFN1.7 x 1.5-6L
Features
- IEC 61000-4-2, level 4: ±15kV (air discharge), ±8kV (contact discharge)
- High common mode attenuation on WLAN frequencies: 10 dB at 300 MHz, 20 dB at 2.4 and 5.0 GHz, 15 dB from 500 MHz to 6.0 GHz
- Small and thin package QFN1.7x1.5-N6L
- Compliant with USB3.2 gen 2 eye diagram
Applications
- Mobile phones
- Notebook, laptop
- Portable devices
- USB, HDMI, DP, RJ45 5G
- SIM/SD Card
- Portable Electronics Devices
Key specifications
Package
QFN1.7 x 1.5-6L
ESDC
±8
ESDA
±15
IRMS
100
RDC TYP
7
