Schottky
BAS40WX
Schottky rectifier
Schottky rectifier in a SOD323 package. Provides low forward-voltage drop and fast switching for high-efficiency rectification and power-supply applications.
SOD323 RoHS Halogen Free AVAILABLE

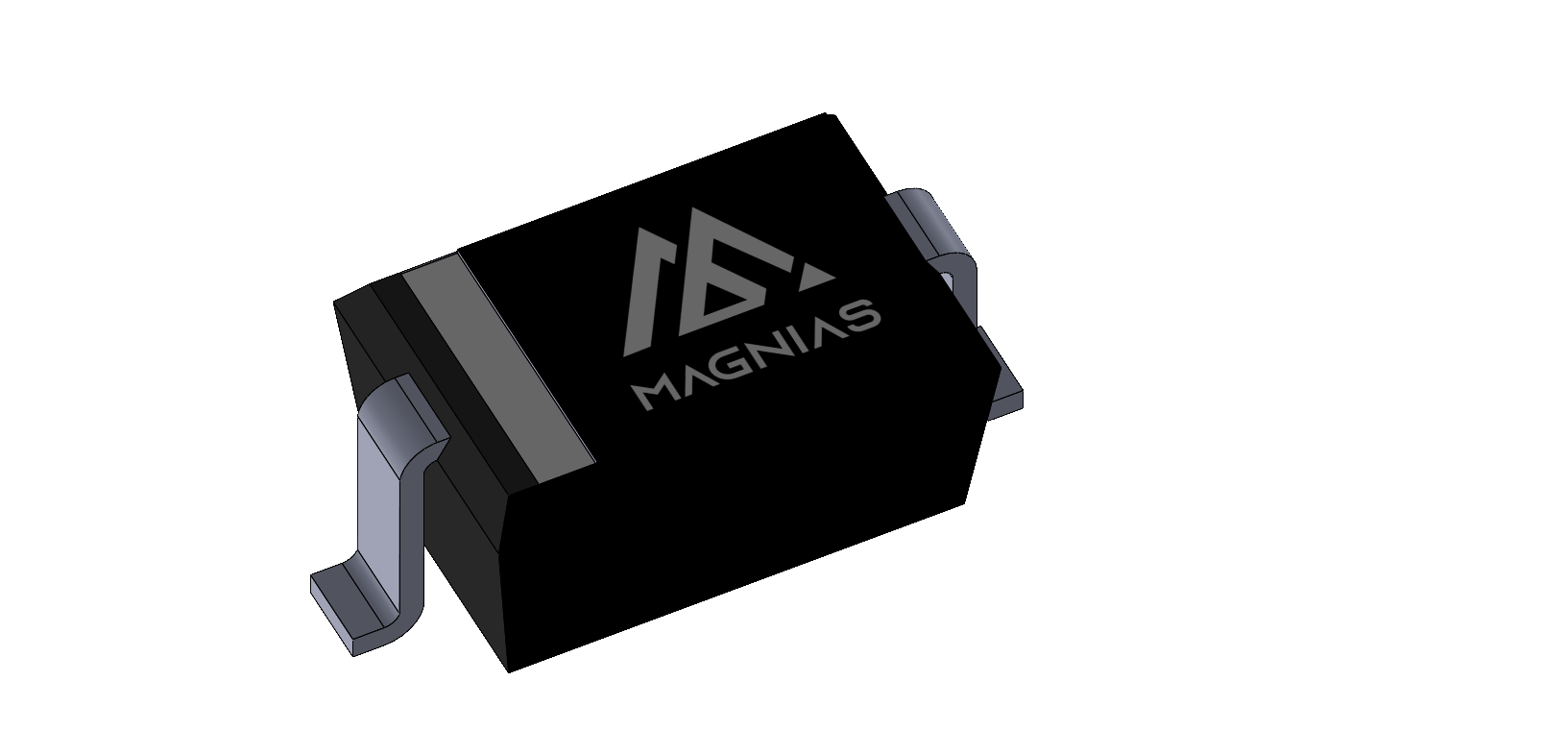

Package: SOD323
Features
- High Voltage Fast Switching
- Low leakage current Schottky
- SOD323-GW Thin SMD package
- RoHS compliant / Green EMC
- Matte Tin (Sn) Lead finish
Applications
- Ultra high-speed switching
- Line termination
- Voltage clamping
- Reverse polarity protection
Key specifications
Product Name
BAS40WX
Package
SOD323
IF
(mA)
200
IFSM
(A)
0.6
VRRM
(V)
40
VF@ IF= 1mA
(V)
0.38
VF@IF=MAX
(V)
1
IR
(mA)
0.0002
Trr
(ns)
5
Cj
(pF)
5
