PMS5R5D02CU
MOSFET

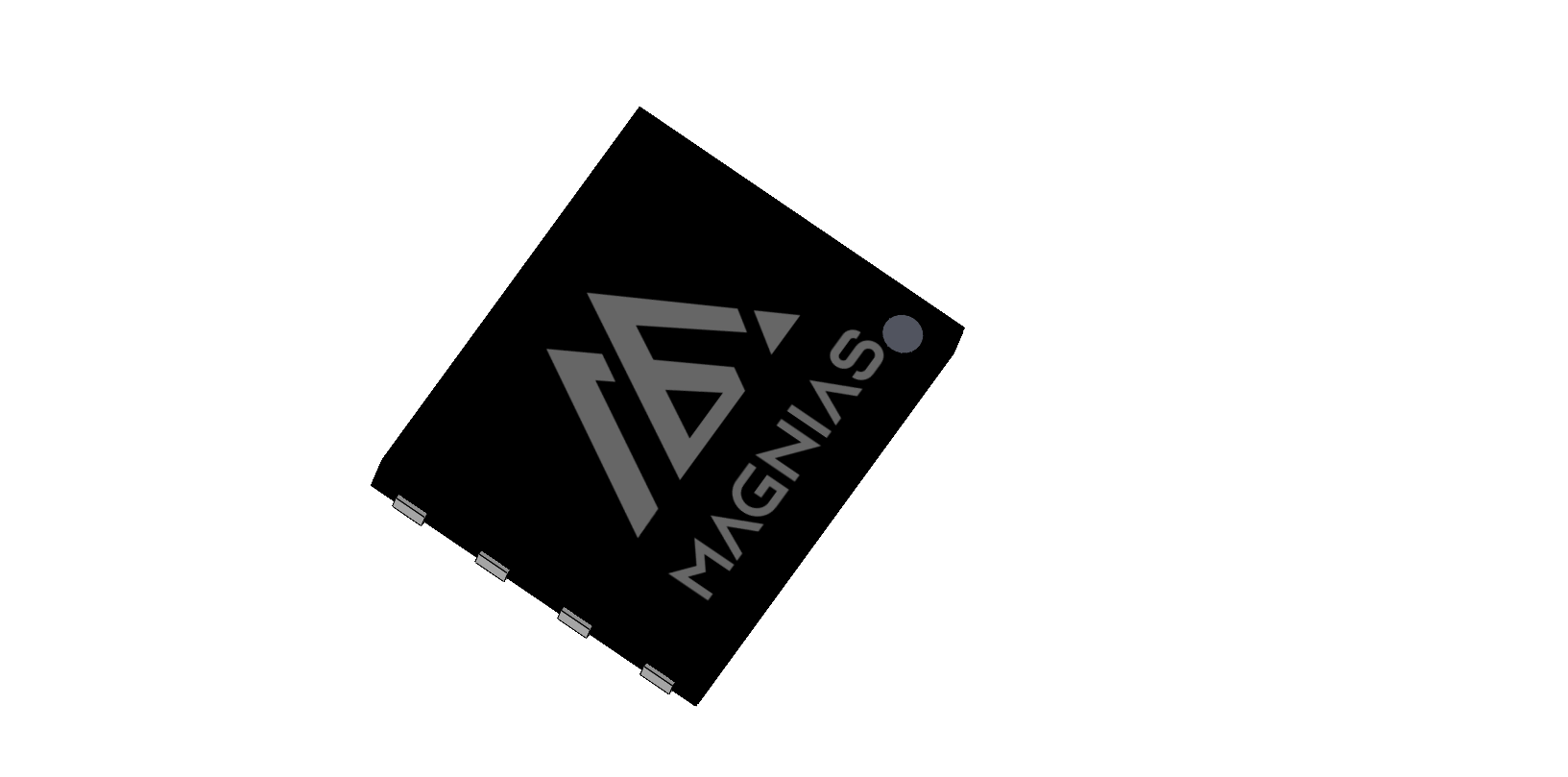

MOSFET in a DFN3030-8L package.
DFN3030-8L RoHS Halogen Free AVAILABLE
Package: DFN3030-8L
Features
- Dual N+N Channel 20V, 20A
- RDS(ON) = 5.5mΩ @ VGS = 4.5V, ID = 10A
- RDS(ON) = 6.4mΩ @ VGS = 2.5V, ID = 3A
- RDS(ON) = 9.1mΩ @ VGS = 1.8V, ID = 2A
- Enhancement mode
- Low RDS(on) to minimize conduction losses
- 100% Avalanche Tested
- ESD Protection ±2kV
Applications
- Handheld Instruments
- POL Applications
- Battery Protection Applications
Key specifications
Product Name
PMS5R5D02CU
Package
DFN3030-8L
Category
Dual N
VDS
(V)
20
ID
(A)
20
RDS(ON)@VG=10V
Typ. (mΩ)
-
RDS(ON)@VG=4.5V
Typ. (mΩ)
5.5
VGS(TH)
Min. (V)
1.3
