MOSFET
PMS200P03AV
MOSFET

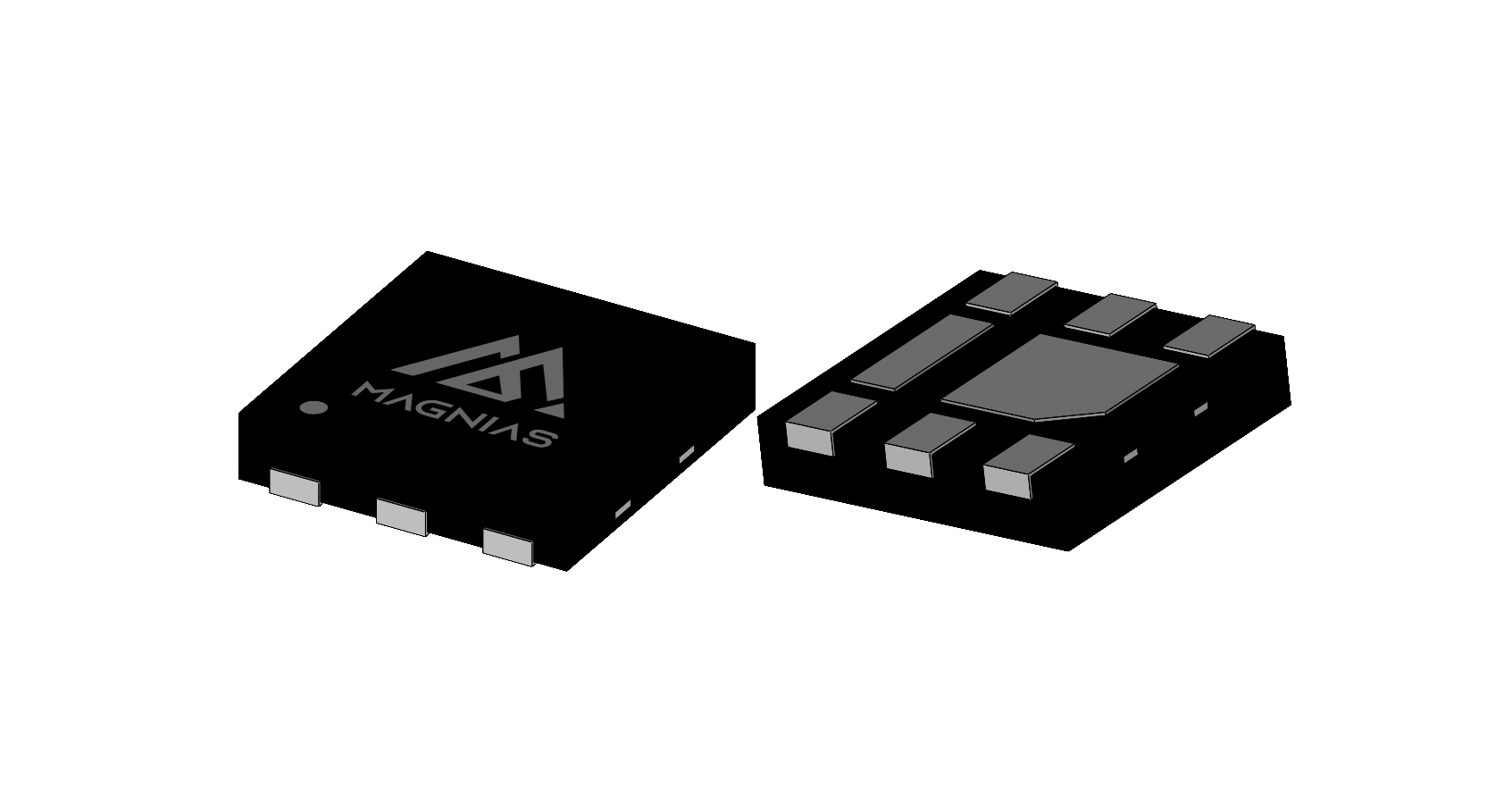

MOSFET in a DFN2020-6L package.
DFN2020-6L RoHS Halogen Free AEC-Q101 version available AVAILABLE
Package: DFN2020-6L
Features
- -30V, -11A
- RDS(on) < 17.7mΩ @ VGS = -10V
- RDS(on) < 23.3mΩ @ VGS = -4.5V
- Advanced Trench Technology
- Excellent RDS(on) and Low Gate Charge
- AEC-Q101 Qualified
Applications
- Load Switch
- PWM Application
- Power Management
Key specifications
Product Name
PMS200P03AV
Package
DFN2020-6L
Category
P
VDS
(V)
-30
ID
(A)
-11
RDS(ON)@VG=10V
Typ. (mΩ)
13.6
RDS(ON)@VG=4.5V
Typ. (mΩ)
17.9
VGS(TH)
Min. (V)
-1
