Load Switch
PSW529-TF2
Load Switch

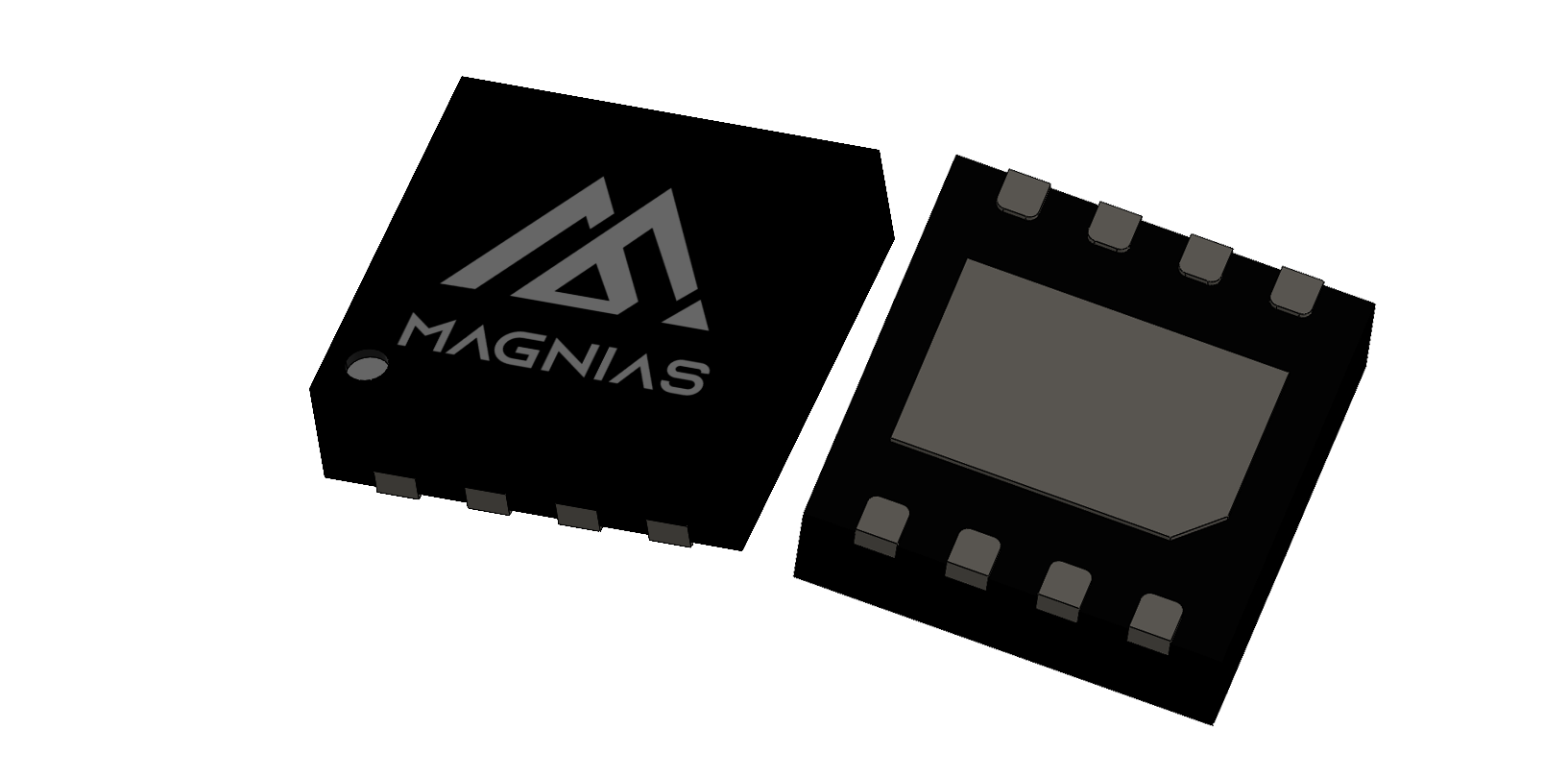

Load Switch in a TDFN2x2-8L package.
TDFN2x2-8L RoHS Halogen Free AVAILABLE
Package — TDFN2x2-8L
Features
- VBIAS Operating Voltage: 2.5V to 5.5V
- Support VIN Range: 0.7V to VBAIS
- 6A continuous current
- Low RDS(ON) of 22mΩ at VBIAS =5.5V
- 50μA low quiescent current
- Adjustable rise time
- Integrated quick output discharge resistor
- TDFN2x2-8L package
Applications
- Portable computers
- Ultrabook
- Table PC
- Set top boxes
- LCD TVs
- Telecom/Networking/Datacom equipment
- SSD
- Consumer electronics
Key specifications
Package
TDFN2x2-8L
R_ON typ (mΩ)
22
VIN range (V)
2.5 – 5.5
IOUT continuous (A)
6
Channels
1
