PT0504N-F7
ESD protection array

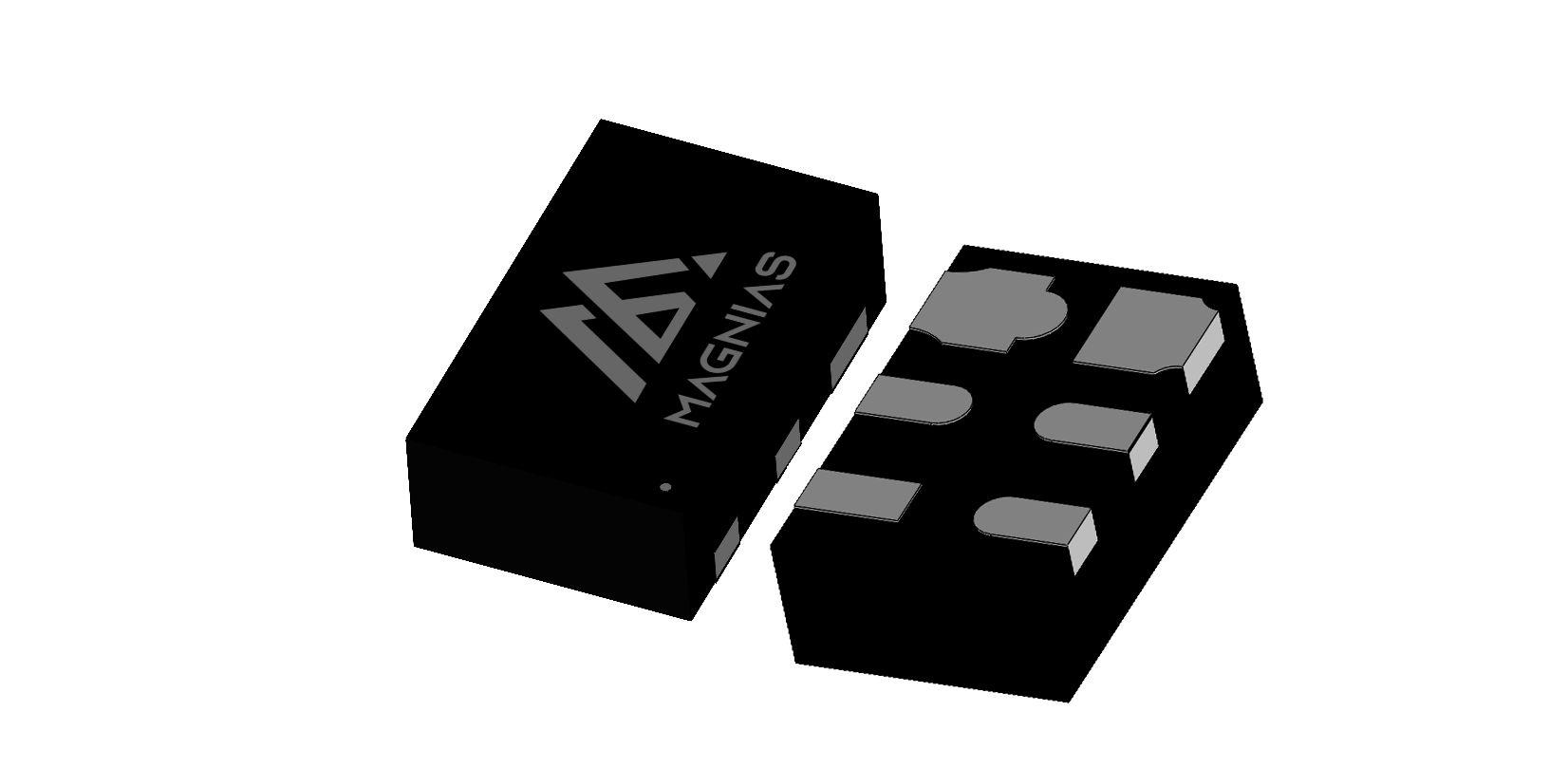

ESD protection array in a DFN1610-6L package. Designed to protect 2 signal lines from damage caused by electrostatic discharge (ESD) strikes and other transients.
DFN1610-6L RoHS Halogen Free AVAILABLE
Package — DFN1610-6L
Features
- Ultra-low capacitance: 0.35pF(typ.)
- Reverse working voltage: 5.5V
- IEC 61000-4-2 (Air): ±24kV
- IEC 61000-4-2 (Contact): ±22kV
- IEC 61000-4-4 (EFT): 40A (5/50ns)
- IEC 61000-4-5 (Surge): 4.2A (8/20us)
Applications
- Desktops, Servers and Notebooks
- USB2.0
- Display Ports
- HDMI 1.3/1.4/HDMI2.0
- Digital Visual Interfaces (DVI)
Key specifications
Product Name
PT0504N-F7
Package
DFN1610-6L
VRWM MAX.
(V)
5
CJ TYP.
(pF)
0.35
Channel
2
ESD C
(kV)
±25
ESD A
(kV)
±25
IPP 8/20
(A)
4.2
