ESD
PS0522G-D9
ESD protection diode
ESD protection diode in a SOD923 package. Designed to protect one signal line from damage caused by electrostatic discharge (ESD) strikes and other transients.
SOD923 RoHS Halogen Free AVAILABLE

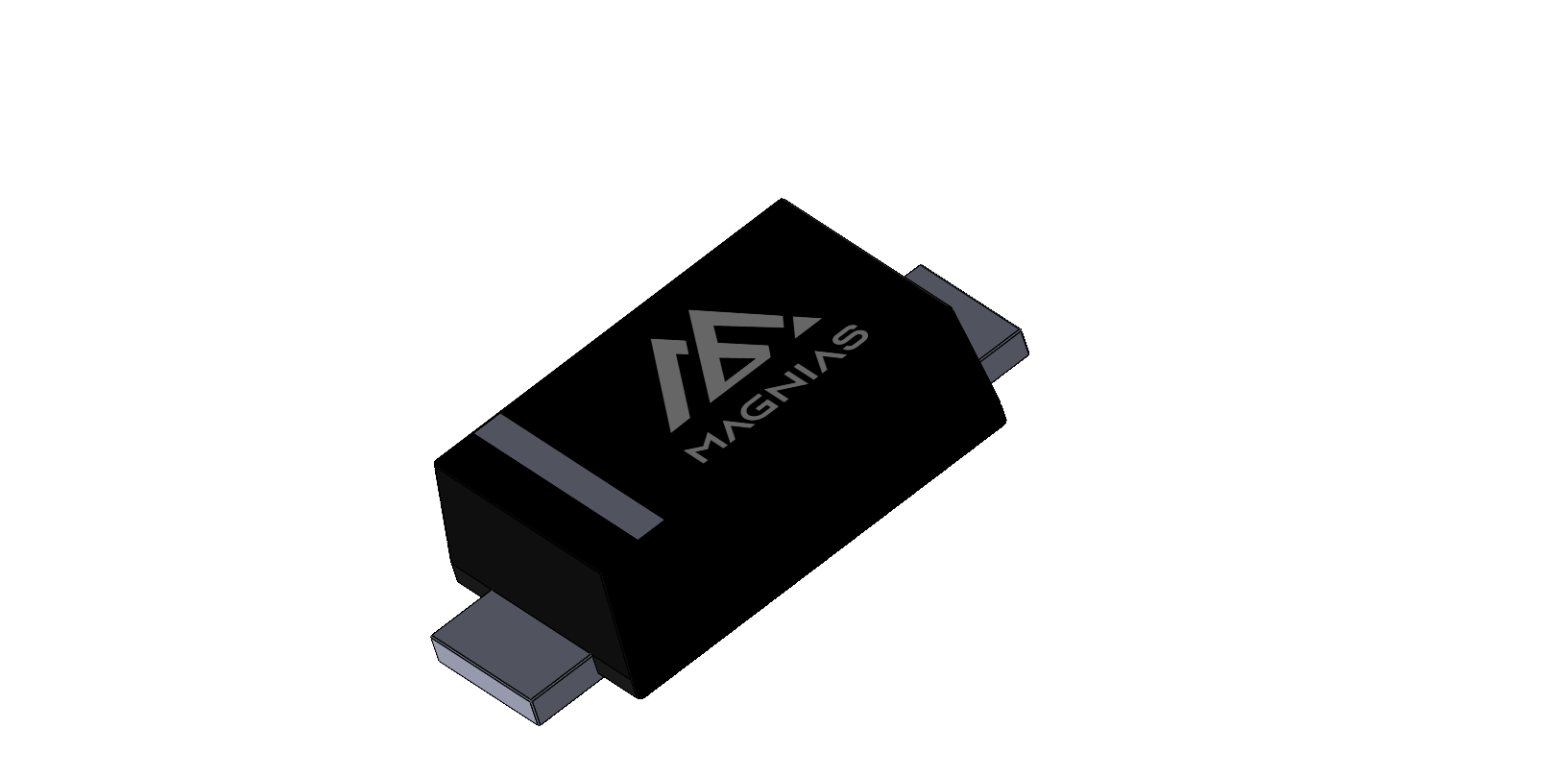

Package — SOD923
Features
- Low capacitance: 13pF(typ.)
- Reverse standoff voltage: 5V
- IEC 61000-4-2 (Air): ±30kV
- IEC 61000-4-2 (Contact): ±30kV
- IEC 61000-4-5 (Surge): 5A
Applications
- Smartphone
- Notebook and Desktop computer
- LCD TV
- Quick charger and power adapter
- Audio terminals
Key specifications
Product Name
PS0522G-D9
Package
SOD923
VRWM MAX.
(V)
5.5
CJ TYP.
(pF)
13
Channel
1
ESD C
(kV)
±30
ESD A
(kV)
±30
IPP 8/20
(A)
5
